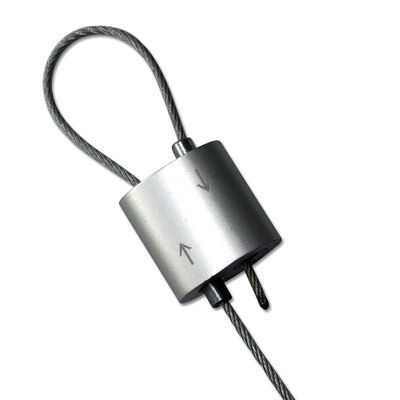

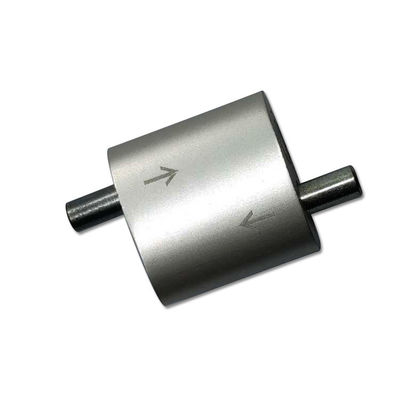

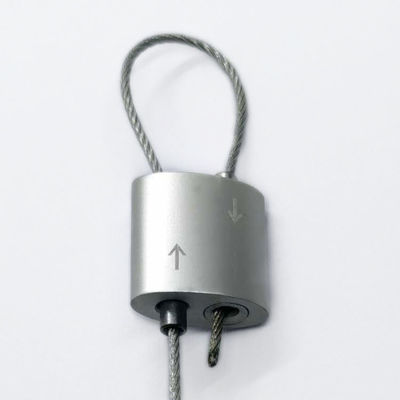

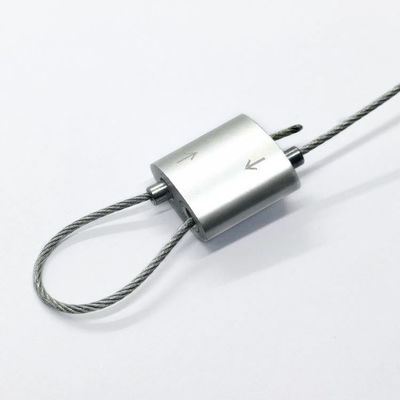

Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips
جزئیات محصول:
| محل منبع: | دونگوان ، چین |
| نام تجاری: | w-mate |
| گواهی: | SGS,RoHS |
| شماره مدل: | WR22011101 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 عدد |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | کیسه پلی اتیلن + کیسه PP + کارتن (اگر شرایط دیگری دارید، لطفا با ما تماس بگیرید) |
| زمان تحویل: | 10-15 روز کار |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 100000 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| نام محصول: | کیت پایان حلقه کابل | مواد: | برنج |
|---|---|---|---|
| ساخت کابل:: | 7x7 یا 7x19 | برنامه: | روشنایی، آویزان |
| حداقل مقدار سفارش: | 1000 عدد | زمان سرب: | 7 روز اگر مواد کافی در انبار وجود داشت |
| نمونه: | نمونه رایگان (لطفا با خدمات مشتری ما تماس بگیرید) | ||
| برجسته کردن: | Double Loop Steel Cable Gripper,Double Loop Steel Cable Trapeze Clamp,Adjustable Cable Gripper Clips,Double Loop Steel Cable Trapeze Clamp,Adjustable Cable Gripper Clips |
||
توضیحات محصول
Urban Trapeze Adjustable Double Loop Steel Cable Trapeze Clamp Midway Gripper Clips
They are more convenient to install and adjust, without any tools, high breaking loading, and it's also widely used in display, supermart, lighting, false ceiling, acoustic baffles, HAVC Ducting,etc.
Cable looping gripper is a self-locking cable stop that eliminates the need for crimps and swaging tools. The device can also be used to create an adjustable loop in 1/16″ steel cable. This small, compact cable stop and cable adjuster is a reliable solution for suspending items in the ceiling ecosystem, including POP signs, navigation signs, and aisle markers. Constructed of high-grade aluminum, the Cable looping gripper is 100% recyclable. Aluminum is considered a green building material because it can be easily recycled infinite times, at just an energy consumption of 10% of the initial input, without losing any of its properties.
Parameter:
| Cable Diameter | Mini Breaking Load | Save Work Load | Size(L*W*H) |
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ3.5mm | 450kg | 90kg | 42*42*22 |
| φ4.0mm | 500kg | 100kg | |
| φ5.0mm | 600kg | 120kg |
Cable Loop Termination Kits - Feature:
Grippers offer strength, reliability, adjustability, and can be re-used.

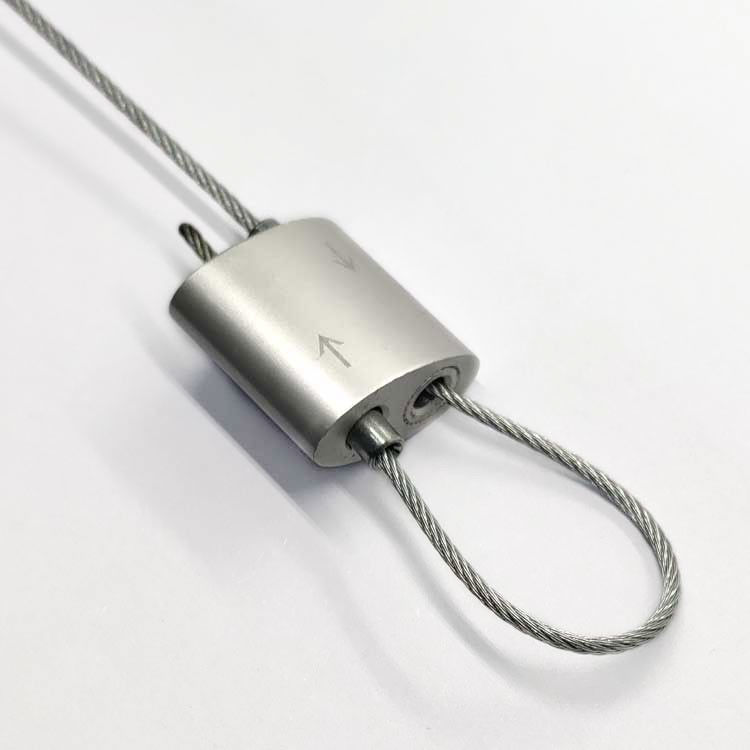

The Looping Gripper is a double-ended gripper with double side cable exits.
This is an easy way to make a quick and secure loop with 1/16” cable. Can also be used to create a series connection.
Competitive Advantage:
2. The national patent of our looping gripper products.
3. We have over ten years of experience in suspension applications.
4. Free sample for our customer,but need you pay for the freight.
5. Suspension products and design solution supplied fast and freely.
6. Best design oriented for your special requirements.
7. Lifelong technical support.
8. Professional team support.
9. Standard Design.
10 .Concept proposal.
11. 3D Drawing.
12. Part delivery.
Our service:
2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produced by our professional workman, you can totally believe our service.
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!
FAQ:
How is the quality of your company controlled? How is the cost controlled?
How do you ship the goods and how long does it take to arrive?
2, Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
3, Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
How to deal with the faulty?
Secondly, during the guarantee period, we will send new products with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
