Practical Mini Looping Gripper With 1/16 Cable Lighting For Mechanical HVAC
جزئیات محصول:
| محل منبع: | دونگوان ، چین |
| نام تجاری: | w-mate |
| گواهی: | SGS,RoHS |
| شماره مدل: | WR21011309 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 عدد |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | کیسه پلی اتیلن + کیسه PP + کارتن (اگر شرایط دیگری دارید، لطفا با ما تماس بگیرید) |
| زمان تحویل: | 10-15 روز کار |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 100000 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| نام محصول: | مینی حلقه گریپر | مواد: | برنج |
|---|---|---|---|
| ساخت کابل:: | 7x7 یا 7x19 | برنامه: | روشنایی، آویزان |
| حداقل مقدار سفارش: | 1000 عدد | زمان سرب: | 7 روز اگر مواد کافی در انبار وجود داشت |
| نمونه: | نمونه رایگان (لطفا با خدمات مشتری ما تماس بگیرید) | ||
| برجسته کردن: | HVAC Aircraft Cable Grippers,1/16 Lighting Aircraft Cable Grippers,7x19 Mechanical Aircraft Cable Grippers,1/16 Lighting Aircraft Cable Grippers,7x19 Mechanical Aircraft Cable Grippers |
||
توضیحات محصول

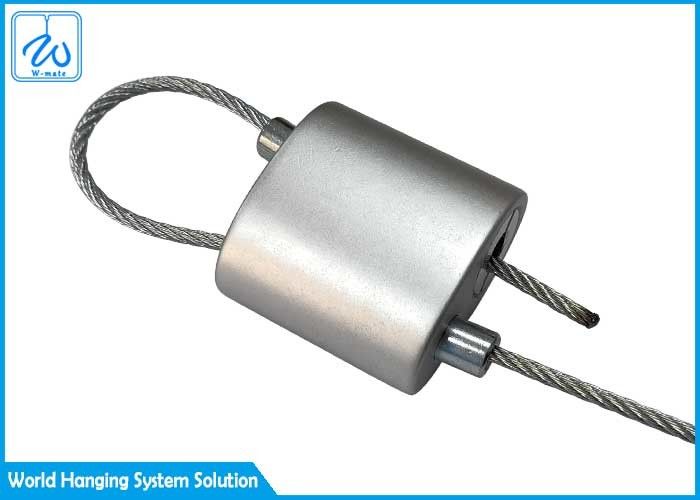

Mini Looping Gripper - Advantage:
Our Looping Gripper easily adapt to the most common applications on the market, providing a suspension system that is easy to install and almost invisible when it is set up. If you have a project that involves an unusually sloped, curved or high ceilings, our track suspension systems may be the solution for you. It is affordable, flexible and easy to install.
Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.
To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.
The 3 ball gripping mechanism is spring-loaded and allows the gripper to move freely up the cable. It cannot move down unless the plunger is depressed. While there is any weight at all on the gripper, the plunger cannot be depressed.
Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.
To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.
The 3 ball gripping mechanism is spring-loaded and allows the gripper to move freely up the cable. It cannot move down unless the plunger is depressed. While there is any weight at all on the gripper, the plunger cannot be depressed.
Parameter:
| Cable Diameter | Mini Breaking Load | Save Work Load | Size(L*W*H) |
| φ0.8mm | 12.5kg | 2.5kg | 15*15*8.5 |
| φ1.0mm | 50kg | 10kg | |
| φ1.2mm | 80kg | 16kg | 20*18*10 |
| φ1.5mm | 130kg | 26kg | |
| φ1.8mm | 180kg | 36kg | 25*25*12 |
| φ2.0mm | 200kg | 40kg | |
| φ2.5mm | 300kg | 60kg | 30*30*15 |
| φ3.0mm | 400kg | 80kg | |
| φ3.5mm | 450kg | 90kg | 42*42*22 |
| φ4.0mm | 500kg | 100kg | |
| φ5.0mm | 600kg | 120kg |

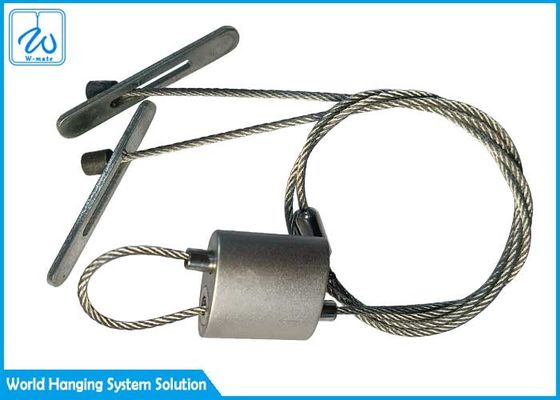

Mini Looping Gripper - Feature:
Using wire rope, you can easily hang objects, permanently or temporarily, with the cable lopping grippers.
Grippers offer strength, reliability, adjustability, and can be re-used.
The Looping Gripper is a double-ended gripper with double side cable exits.
This is an easy way to make a quick and secure loop with 1/16” cable. Can also be used to create a series connection.
Grippers offer strength, reliability, adjustability, and can be re-used.
The Looping Gripper is a double-ended gripper with double side cable exits.
This is an easy way to make a quick and secure loop with 1/16” cable. Can also be used to create a series connection.
Our service:
1. We can deliver within short time. Several styles for your choose.
2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produced by our professional workman, you can totally believe our service.
2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produced by our professional workman, you can totally believe our service.
Company profile:
We focus on the production and design of suspension system accessories.
Provide lighting installation, artwork display system, sign hanging, HVAC.
We have our own production workshop,You need customized products, and we can do it for you.
For example, shape design, configuration and color can be specified if you have special requirements.
In addition, our engineers can also provide you with technical support and design professional suspension scheme.
Provide lighting installation, artwork display system, sign hanging, HVAC.
We have our own production workshop,You need customized products, and we can do it for you.
For example, shape design, configuration and color can be specified if you have special requirements.
In addition, our engineers can also provide you with technical support and design professional suspension scheme.
Contact us today for all your cable support needs.
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!
Can you picture your new design already? Great, get in touch with us and we’ll be happy to help arrange all the cable support fittings you need!
FAQ:
What is your trading and payment terms?
1. Payment term: T/T 30% deposit after order confirmed, 70% balance before shipment or paypal for small amount .
2. Lead time : normally 15-25days after deposit received.
3. Sample policy : Samples are always available for each model . Samples can be ready in 3-10 days once payment received .
4. Shipping port: Shenzhen/Guangzhou China.
5. Discounts : We offer discount for big quantity.
2. Lead time : normally 15-25days after deposit received.
3. Sample policy : Samples are always available for each model . Samples can be ready in 3-10 days once payment received .
4. Shipping port: Shenzhen/Guangzhou China.
5. Discounts : We offer discount for big quantity.
How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new products with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Secondly, during the guarantee period, we will send new products with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
How to place an order?
We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks.
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks.
