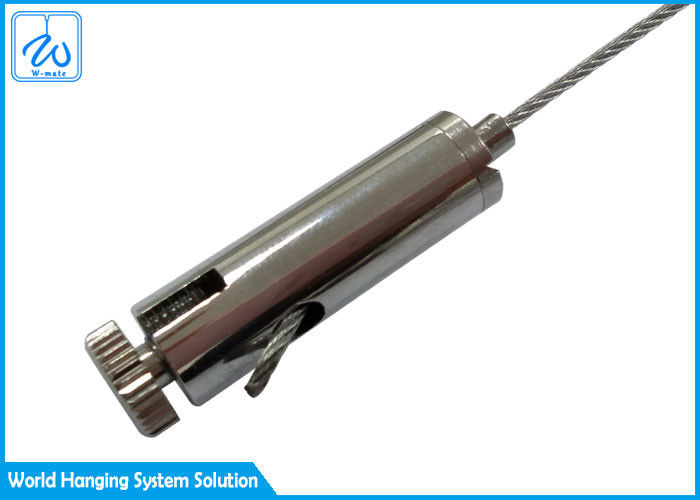

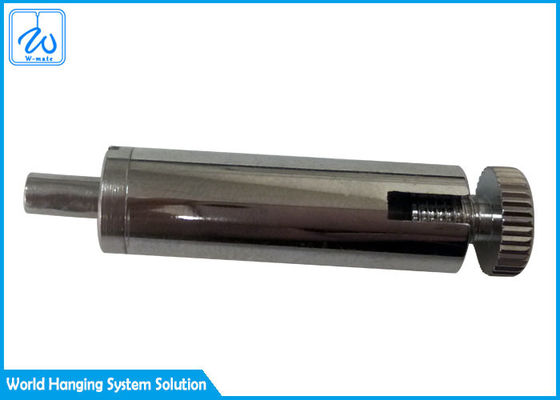

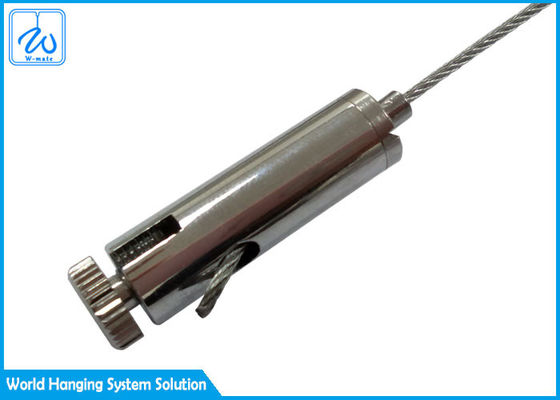

Stainless Wire Cable Grippers / Steel Wire Rope Clamp Press Button To Lock
جزئیات محصول:
| محل منبع: | دونگوان ، چین |
| نام تجاری: | w-mate |
| گواهی: | SGS |
| شماره مدل: | WCG-F111 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 عدد |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | کیسه پلی اتیلن + کیسه PP + کارتن (اگر شرایط دیگری دارید، لطفا با ما تماس بگیرید) |
| زمان تحویل: | 10-15 روز کار |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 100000 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| نام محصول: | گیره های کابل ضد زنگ | مواد: | برنج |
|---|---|---|---|
| ساخت کابل:: | 7x7 یا 7x19 | برنامه: | سیستم روشنایی کابلی معلق |
| حداقل مقدار سفارش: | 1000 عدد | زمان سرب: | 7 روز اگر مواد کافی در انبار وجود داشت |
| برجسته کردن: | wire gripper tool,steel cable gripper,steel cable gripper |
||
توضیحات محصول
Description:
Stainless Cable Grippers, (also called cable slider or cable fastener): Metallic component, cylindrical, external dimensions according to Annex 2, capable of gripping a wire rope of 7 x 7 wires via 3 sphere locking system. Grips cable when sliding in one direction and releases it on opposite direction. After cable is inserted provides no access to locking mechanism and no possibility of tampering with its internals. Used as component in metallic security seal.
Consists of:
1) Body: holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable
2) Locking spheres: 3 sphere arranged in a triangular pattern that will hold the cable in place via pressure
3) Wedge or bush: transfers the pressure of the spring to the spheres
4) Spring: Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant
5) Lid: to close the assembly when it is ready. It is closed by pressing (min 10 kgf ) so the assembly cannot be dismantled easily without damaging it. The lid is colored in black or other distinctive color so the gripper to prevent inverted usage.
Parameter:
| Material | Brass | Cable Construction | 7x7 or 7x19 |
| Certification | SGS,ROSH | Safe Working Load | 2.5KG,Or Depends on cable diameter |
| MOQ | 1000pcs | Sample | Free Sample (Please contact our customer service) |
| Light Direction | adjustable | Application | For lighting hanging |
From the ceiling to the fixture, we can provide you with a complete cable suspension system for quick and easy installation.
Our professional production process can provide excellent finish to match high quality fixture details.
Company profile:
We focus on the production and design of suspension system accessories.
Provide lighting installation, artwork display system, sign hanging, HVAC.
We have our own production workshop,You need customized products, and we can do it for you.
For example, shape design, configuration and color can be specified if you have special requirements.
In addition, our engineers can also provide you with technical support and design professional suspension scheme.
We adhere to the concept of "common progress",To meet the different needs of customers and create a brilliant career together.
Our service:
1. We can deliver within short time. Several styles for your choose.
2. We have rich experience of design, manufacture and sell products, we cherish every order from our honor.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4. All of our products are produced by our professional workman, you can totally believe our service.
FAQ:
How to place an order?
We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks.
What is your trading and payment terms?
1. Payment term: T/T 30% deposit after order confirmed, 70% balance before shipment or paypal for small amount .
2. Lead time : normally 15-25days after deposit received.
3. Sample policy : Samples are always available for each model . Samples can be ready in 3-10 days once payment received .
4. Shipping port: Shenzhen/Guangzhou China.
5. Discounts : We offer discount for big quantity.
How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new products with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
