One To Two Cable Grippers Metal Suspension System , Durable Drop Ceiling Suspension System
جزئیات محصول:
| محل منبع: | دونگوان ، چین |
| نام تجاری: | w-mate |
| گواهی: | SGS |
| شماره مدل: | ACS-T201 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1000 عدد |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | کیسه پلی اتیلن + کیسه PP + کارتن (اگر شرایط دیگری دارید، لطفا با ما تماس بگیرید) |
| زمان تحویل: | 10-15 روز کار |
| شرایط پرداخت: | T/T، وسترن یونیون |
| قابلیت ارائه: | 100000 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| نام محصول: | سیستم تعلیق سقف آکوستیک | مواد: | برنج + فولاد |
|---|---|---|---|
| طول کابل: | 1500 میلی متر، یا سفارشی کنید | قطر کابل: | Ø1.5 میلی متر |
| بار کاری ایمن: | 16 کیلوگرم | ماده سمی: | سیم فولادی ضد زنگ 304 |
| برجسته کردن: | metal suspension system,ceiling hanging system,ceiling hanging system |
||
توضیحات محصول

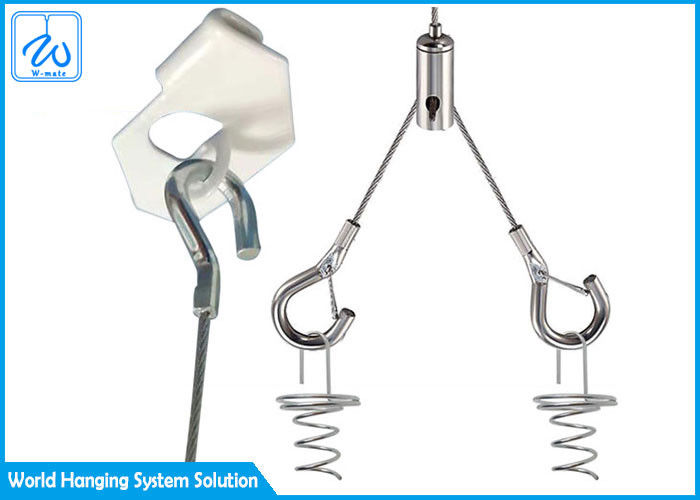

one to two Cable Grippers Suspension method acoustic ceiling suspension system
Product Quick Details:
The use of a one-to-two Cable Grippers achieves two points of suspension of the sound absorbing panel material, increasing the stability and safety of the suspended items. The suspension series of sound absorbing panels can be designed into an inspirational ceiling panel series. This product is light in weight, easy to handle, and free to adjust height for easy installation.
- 1 * Metal Ceiling Twinst Stud
- 1 * Double-end wire rope hook
- 1* Hook Gripper
- 1* Y-Hook End Cable Loop
- 2* Coil spring
No germs, very low dust release rate.
Strong sound absorption performance, A1 fire rating, dimensional stability up to 100% relative humidity.
Can be used in theaters, conference rooms, music rooms, libraries and many other fields.
Product Specification:
| 1 | Material | Brass+Stainless Steel Wire |
| 2 | Wire Rope | φ1.5 LB Galvanized steel |
| 3 | Coil spring | φ2.0*φ22*48 |
| 4 | Fixed anchor | M6*88 with hook sleeve anchors |
| 5 | Hook Gripper | φ9*26*φ4.0 |
| 6 | Sound absorbing panel thickness | ≥30mm |
| 7 | Sound absorbing board material | Rock wool, fiberglass |
| 8 | Sound absorbing panel type | Rectangular, triangular, circular, elliptical, hexagonal, etc. |
| 9 | Safe load | 0-16kg |
| 10 | package | PE bag +PP bag + carton (if you have other requirements, please contact us) |
unit:mm
The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray test and tensile test at the factory to ensure the quality and safety of the products.
Wire Rope Mate specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.
The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.
Customer Service:
1. Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
2. According to customer requirements, we can customize different sizes, colors and other specifications. The products can be designed with the logo and logo required by customers.
3. Samples can be provided free of charge to customers (requires self-paying postage).
4. Your inquiry related to our products or price will be replied in 24hrs.
FAQ:
1. Is it OK to print my logo on our product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
2. Why did you choose you?
1. Excellent R & D capability , advanced processing and testing equipment.More than 40 machines,like cutting machines,welding machine ,casting machine etc.
2. A whole set inspect equipment.
3. The specification including material, color, dimension of the product ca customized as your requirement.
4. responsible and professional QA team.
5. Superior after sales services.
3. How can you make sure we will receive the products with high quality?
Our QC team will inspect and test goods very carefully when assembling/packing and before delivery.
