• Stainless Steel Wire Suspension Hanging Kit For Acoustic Panels String Light
Stainless Steel Wire Suspension Hanging Kit For Acoustic Panels String Light

Stainless Steel Wire Suspension Hanging Kit For Acoustic Panels String Light

جزئیات محصول:

محل منبع: دونگوان ، چین
نام تجاری: w-mate
گواهی: SGS
شماره مدل: WHS-118

پرداخت:

مقدار حداقل تعداد سفارش: 1000 عدد
قیمت: negotiable
جزئیات بسته بندی: کیسه پلی اتیلن + کیسه PP + کارتن (اگر شرایط دیگری دارید، لطفا با ما تماس بگیرید)
زمان تحویل: 10-15 روز کار
شرایط پرداخت: T/T، وسترن یونیون
قابلیت ارائه: 100000 قطعه در ماه
بهترین قیمت مخاطب

اطلاعات تکمیلی
نام محصول: پانل های آکوستیک رشته نور آویزان مواد: برنج + فولاد
نمونه: نمونه رایگان ساخت سیم فولادی: 7x7
رنگ: رنگ فلزی اصلی حالت نصب: DIY
برجسته کردن:

ceiling light hanging kit,hanging light wire kit

,

hanging light wire kit

توضیحات محصول

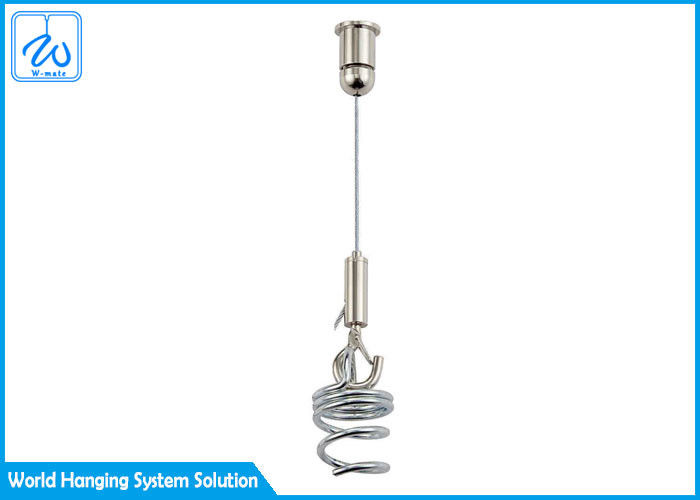

Stainless Steel Cable Suspension Kits Acoustic Panels String Light hanging



Product Quick Details:

The suspension kit is very convenient for hanging sound-absorbing panels. It is free to adjust the height of the rope without tools. It is convenient and safe. It is the preferred tool for hanging materials such as building decoration materials.



Product features:


1. Screw ceiling anchor with wire


Two-part screw-on ceiling anchor with drop wire,Thimble size bullet fitting nickel finish,Ideal fixing for ceiling panels and lighting.
Ceiling anchors for attaching drop wires to plaster ceilings are neat,quick to install and supplied at low cost.
Suspended services in buildings such as acoustic panels, light fittings etc require rapid and reliable fixing systems combined with support wires. For lightweight building services applications 1.5mm wire cable can be relied upon to carry loads in excess of 10 kg per suspension point. These slender cables are both economical and unobtrusive.

Screw ceiling anchor for conventional ceilings.
For plasterboard and similar conventional ceilings which will accept a plug and screw fixing,the two-part ceiling anchor is screwed to the ceiling capturing the supplied 1m or 2m length of wire.

2. Suspension hooks self locking

Suspension hooks with self locking facility a ideal for rapid.

Installation and levelling up on site.
Slide the hook up a support wire (1.5mm dia) and it locks fast wherever it is placed.
To lower simply depress the quick release button as shown on the image. The clutch mechanism is released until the suspended item is at exactly the right height. Excess wire can then be snipped off.It is much easier to level up acoustic panels, light fittings and ceiling hung building services when the adjustment can be performed at the suspension point rather than at the ceiling.

The safe Hook has a spring catch across the mouth of the hook to prevent accidental detachment.

3. Suspension fitting for rockwool acoustic panels

This is a Spiral corkscrew type panel hanger for acoustic panels - type panels ,
Economic alternative to panel fixings.

Spiral anchors provide a convenient suspension point for certain types of acoustic,ceiling panels made from rockwool which will accept a screw-in corkscrew type fitment.
Acoustic ceiling installers fitting suspended acoustic panels often search for lower,cost installation components.



The spiral anchor and our associated fittings have proved a successful alternative to the manufacturers' own branded components offering significant savings.

Spiral anchor suspension fittings can be used in conjunction with our ceiling fixings,suspension cables and adjustable suspension hooks to create a low cost solution.



Our advantage:

The materials used in all products are in line with EU ROHS standards. The products are subjected to strict salt spray test and tensile test at the factory to ensure the quality and safety of the products.

Stainless Steel Wire Suspension Hanging Kit For Acoustic Panels String Light 0

Wire Rope Mate specializes in suspension application design, and the company's products are designed to reduce installation costs and increase flexibility.

The company has advanced production equipment, high-precision CNC automatic lathes to meet the high-volume production needs of customers.

Stainless Steel Wire Suspension Hanging Kit For Acoustic Panels String Light 1





Customer Service:

1, 24-hour on line service.

2, Excellent service and professional solution.

3, Prompt Delivery.

4, Special benefit for long term business customers.



FAQ:



1. How do you design a Ceiling Suspension Cable / Kits ?

We have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility, cost, When we design the ceiling suspension cable /kits .



2. How is the quality of your company controlled? How is the cost controlled?

We have four inspections before and after, and we have a complete set of QC inspection processes and solutions.



3. How to place an order?

We produce according to customers’ specifications,so you’d better give us complete information as specified below:
Material,Diameter,Construction,Coating,Length,Packing,Quantity, Remarks.
